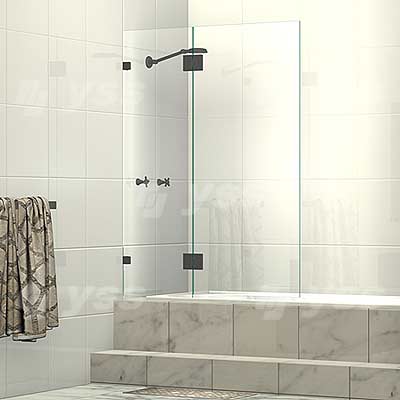

Frameless Two Panel Shower Bath Screen Brushed Gunmetal
Frameless Two Panel Shower Bath Screen Brushed Gunmetal
35% OFF

Brushed Gunmetal Two Panel with Hinge Door

Frameless Shower Bath Screen
BS8-GM
  • BRUSH GUNMETAL
  • DOOR & FIXED
Price:
$312.00 (incl GST)
save $168.00
was $480.00
35%
OFF
Installation:
Base Price$265.00
shelf install+ $30.00
pick up by installer+ $70.00
Install Price$265.00

For Sydney Metro, we have a list
of professional installers who can
deliver and install. conditions apply
Delivery
:
Calculate Freight
Pick Up:Artarmon, NSW
Stock Available
[ 342 sold ]
i
Installation Manual Not Available

Got Questions about Installation?
Ask our technicians, they'll be able to assist you.
Product Warranty | Returns & Exchange | Print Version
×
Select Finish
Chrome
Matte Black
Brush Nickel
Brush Brass
Brush Gunmetal
Brush Gold
Select Size
1000mm[Included in Price]
1100mm[add $10.00]

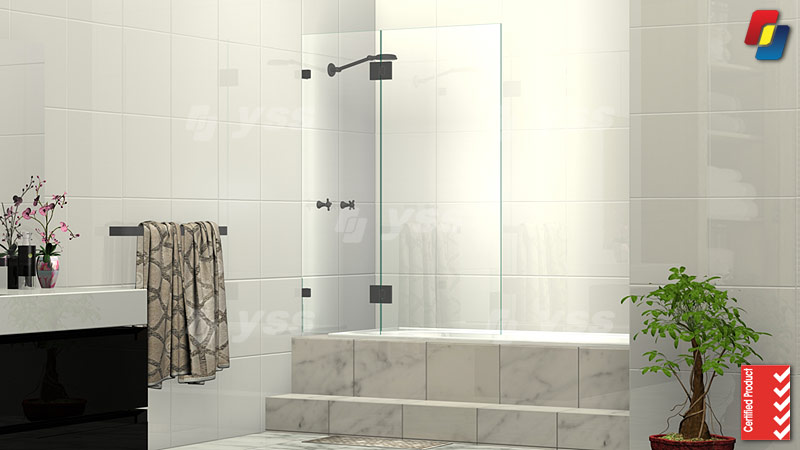

Over Bath Shower Screen
Package Includes
  • 1x Door Panel
  • 1x Hinged Panel
  • 2x Hinges
  • 2x Wall Brackets
  • 1x PVC Water Seal
Glass Type Panel Dimensions Total Dimensions
Clear Safety Glass
8mm Thick		650 x 1490mm (door)
450 x 1500mm (fixed)		 1100 x 1500mm
HandleHinge Type Layout Reversible
No HandleSpring Loaded Yes
Finishing on Hardware Certified Product Warranty
Brushed BrassAS1288 & AS2208 One Year
(read)
Installation Requirements
  • Glass panels are cut square so you need to check that you walls are plumb and floors are level within a 5mm tolerance, find out more information here.
  • Wall tiles must be from floor to ceiling or walls must be tiled to the height of the screen because the position of fittings are set.
Hinges
  • Spring-loaded, glass-to-glass hinges.
  • Self centering action from about 25°.
  • Pivots 90° in both directions, a total of 180°.
  • Glass has pre-set cutouts for hinges.

  • Finish: Brushed Gunmetal
Standard Hinges (default)
Max Weight (32kg)
Max Width (650mm)
[Included in Price]
Heavy Duty Hinges (upgrade)
Max Weight (37kg)
Max Width (750mm)
[add $40.00]
shower screen glass to glass 180deg hinges - brushed gunmetal
shower screen glass to glass 180deg hinges - brushed gunmetal
shower screen glass to glass 180deg hinges - brushed gunmetal
Wall Brackets
  • L-Shaped wall brackets.
  • Used to attached glass panels to the wall.
  • Glass has pre-drilled holes for brackets.

  • Wall brackets positioned:
      - 200mm from the top &
      - 210mm from the bottom

  • Screw and plug included.

  • Finish: Brushed Gunmetal

[Included in Price]
(2x Wall Brackets)		shower screen glass to wall bracket fitting - brushed gunmetal
shower screen glass to wall bracket fitting - brushed gunmetal
Shelf and Bracket Fixing Options
Shelf and Bracket
(0x Shelf + 0x Bracket)
[Not Included in Price]
Add Shelf
(1x Shelf)
[add $30.00]
Add Shelf and Bracket
(1x Shelf + 1x Bracket)
[add $47.00]
  • Shelf measures 240mm x 240mm.
  • Shelves are stylish and makes a great addition to your shower screen. It provides additional strength and stability to the hinged panel, and it gives a useful place to put all your shower products.

  • Installation: Add $20 (per additional shelf)

  • Material: 10mm thick Clear Toughened Grade A Safety Glass
triangle corner glass shelf and soap dish holder
triangle corner glass shelf and soap dish holder
  • Bracket measures 30mm x 30mm x 20mm.
  • For easy installation of the shelf.

  • Finish: Brushed Gunmetal
glass shelf clip bracket - brushed gunmetal
glass shelf clip bracket - brushed gunmetal
PVC Water Stopper K-Profile
  • K-Shape PVC water stopper profile.
  • Attach to the underside of the door panel to stop water trickelling under the door clearance.
  • The diagram (below) illustrates how this profile is to be attached to the under side of a door panel.


  • Material: Hard PVC plastic and Soft Vinyl lip

[Included in Price]
(1x PVC Water Seal)		shower screen pvc water stopper profile kshower screen pvc water stopper profile k
Setting Blocks
Setting Blocks
(0x Packs)
[Not Included in Price]
Add Setting Blocks
(1x Pack)
[add $5.00]
  • Setting blocks are essential for a frameless shower screen installation to be successful.
  • Provides a cushion for the glass panel to sit on and support the panels weight.
  • Glass edges are prevented from touching the tiles because the setting block ensures there is the correct glass-to-tile spacing. The glass edge should never come in contact with any hard surface.
  • Recommended for DIY installations or if your installer does not have his own setting blocks.

  • Assorted Pack of 5
  • 3.2mm thick x 12mm wide x 50mm length (3pcs)
  • 10mm thick x 12mm wide x 50mm length (2pcs)

  • NOTE: All Yss approved third-party installers have their own setting blocks.
glass setting block
Commercial Grade Silicon
No Silicon
(0x Tube)
[Not Included in Price]
Silicon
(1x Tube)
[add $20.00]
  • Translucent Neutral Cure Anti-Fungal Silicone Adhesive 300g
  • One part 100% oxime neutral curing adhesive
  • Resists mildew when exposed to prolonged hot and humid environments

Key Performance Properties
- Non Slump
- Mildew Resistant
- Outstanding Weatherability
- Excellent Adhesion
- Excellent UV Resistance
- 5 Star VOC Compliant		Commercial Grade Silicone
EnduroShield DIY Glass Treatment Kit
No Glass Treatment
(0x Packs)
[Not Included in Price]
EnduroShield DIY Kit
(1x Pack)
[add $65.00]
  • EnduroShield DIY Glass Treatment Kit

  • You can apply it with no experience.
  • Simple spray & wipe solution takes minutes to apply & cuts cleaning time by up to 90%.
  • Each pack contains everything you need including cleaner and polishing pad.

  • Simply clean the glass with the pre-treatment cleaner included.
  • Apply the EnduroShield protective layer and wait for it to dry.

enduroshield diy glass treatment kit
Premium Quality Grade 'A' Toughened Safety Glass
  • The shower screen glass panels is made from premium quality Grade A toughened glass.
  • This shower screen complies with the Australian Standards AS1288 for design and complies with the Australian Standards AS2208 for toughened grade A safety glass quality.

  • Material: 8mm thick Clear Toughened Grade A Safety Glass
Packaging Weight & Size
PackageLengthWidthHeightWeight
Panel 1 of 2160 cm45 cm5 cm11 kg
Panel 2 of 2160 cm75 cm5 cm20 kg
Box of Fittings10 cm10 cm10 cm3 kg
(actual product may vary slightly from illustrated pictures)
Product Warranty
12 Months Warranty[Included in Price](read)
2 Years Warranty[add $50.00](read)
3 Years Warranty[add $75.00](read)
5 Years Warranty[add $100.00](read)
Other Related Products
Returns and Exchange Policy
(read)
Faulty Products
You are entitled to a refund, exchange, or repair depending if the product fault results from a major or non-major failure (read)
Non-Faulty Products
Conditions :Refund or Exchange will only be accepted if:
  • the product is returned within 14 days from the date of dispatch or collection
  • the product has not been used or you have not attempted to install the product
  • the product and packaging is not damaged
  • the product is not: a special order, a clearance item, or a TNT-FedEx freighted item

Refunds :A 20% (or $50 whichever greater) cancellation and handling fee applies to the refunded amount
  • the product is to be returned to our warehouse at your own cost
  • refund applies to the purchased price of the product
  • freight or postage is non-refundable

Exchanges :A $50 administration and handling fee applies to exchanges
  • the product is to be returned to our warehouse at your own cost
