Installation Requirements
- Glass panels are cut square so you need to check that you walls are plumb and floors are level within a 5mm tolerance, find out more information here.
- Wall tiles must be from floor to ceiling or walls must be tiled to the height of the screen because the position of fittings are set.
- L-Shaped wall brackets.
- Used to attached glass panels to the wall.
- Glass has pre-drilled holes for brackets.
- Wall brackets positioned:
- 200mm from the top &
- 230mm from the bottom
- Screw and plug included.

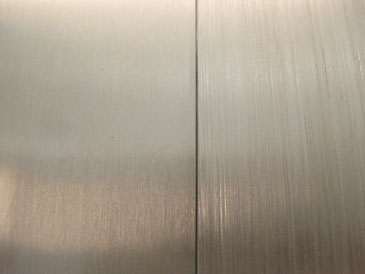

- Finish: Heavy Brushed Nickel
[Included in Price]
(2x Wall Brackets) |  | |
|
- Setting blocks are essential for a frameless shower screen installation to be successful.
- Provides a cushion for the glass panel to sit on and support the panels weight.
- Glass edges are prevented from touching the tiles because the setting block ensures there is the correct glass-to-tile spacing. The glass edge should never come in contact with any hard surface.
- Recommended for DIY installations or if your installer does not have his own setting blocks.
- Assorted Pack of 5
- 3.2mm thick x 12mm wide x 50mm length (3pcs)
- 10mm thick x 12mm wide x 50mm length (2pcs)
- NOTE: All Yss approved third-party installers have their own setting blocks.
|  |
|
- Translucent Neutral Cure Anti-Fungal Silicone Adhesive 300g
- One part 100% oxime neutral curing adhesive
- Resists mildew when exposed to prolonged hot and humid environments
Key Performance Properties
- Non Slump
- Mildew Resistant
- Outstanding Weatherability
- Excellent Adhesion
- Excellent UV Resistance
- 5 Star VOC Compliant |  |
EnduroShield DIY Glass Treatment Kit
|
- EnduroShield DIY Glass Treatment Kit
- You can apply it with no experience.
- Simple spray & wipe solution takes minutes to apply & cuts cleaning time by up to 90%.
- Each pack contains everything you need including cleaner and polishing pad.
- Simply clean the glass with the pre-treatment cleaner included.
- Apply the EnduroShield protective layer and wait for it to dry.
|  |
Premium Quality Grade 'A' Toughened Safety Glass
- The shower screen glass panels is made from premium quality Grade A toughened glass.
- This shower screen complies with the Australian Standards AS1288 for design and complies with the Australian Standards AS2208 for toughened grade A safety glass quality.
- Material: 10mm thick Clear Toughened Grade A Safety Glass
| Package | Length | Width | Height | Weight |
| Panel 1 of 1 | 210 cm | 60 cm | 5 cm | 25 kg |
| Box of Fittings | 10 cm | 10 cm | 5 cm | 1 kg |
(actual product may vary slightly from illustrated pictures)
